P5.9 P6.9 P10.4 GOB Flexible Customization Ultra Lightweight Excellent Heat Dissipation IP65 Waterproof Design Carbon fiber Frame High Transparency LED

Product Categories
Shenzhen Fionexx Technologies Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

P5.9 P6.9 P10.4 GOB Flexible Customization Ultra Lightweight Excellent Heat Dissipation IP65 Waterproof Design Carbon fiber Frame High Transparency LED

Brand Name : Fionexx

Certification : CCC/CE/RoHS/FCC/CB/TUV/IEC

Place of Origin : china

MOQ : Negotiate

Price : Negotiate

Supply Ability : 1000 pcs per month

Delivery Time : 21-35 days

Packaging Details : Flight case

LED Type : GOB

Maintenance : Rear access

Single Point Brightness Corection : Have

Brightness(Nits) : 5000

Color Temperature(K) : 3200-9300

Viewing Angle(V/H) : 160°/160°

Brightness/Color Unifommity : ≥97%

Weight Cabinet : 6.9kg

Contrast : 6000：1

Frame Frequency : 50/60

Gray Level : 14/16

Refresh Rate(Hz) : 7680

Contact Now

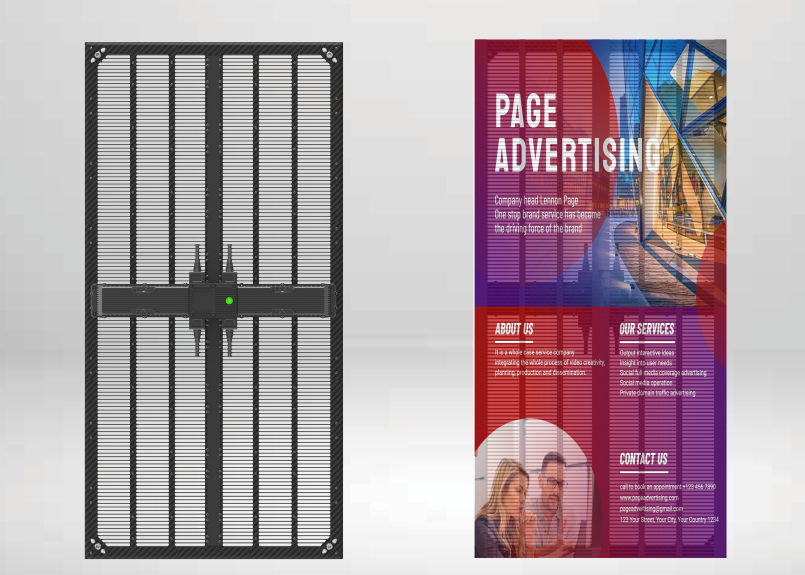

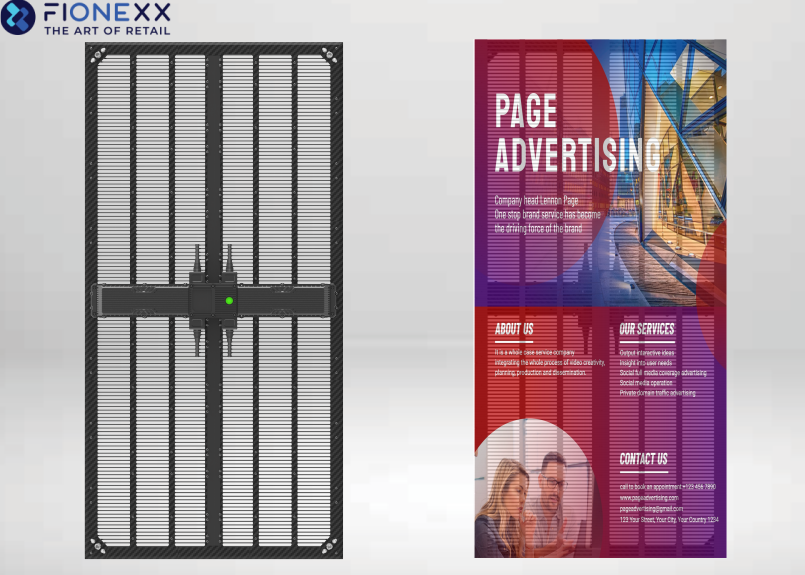

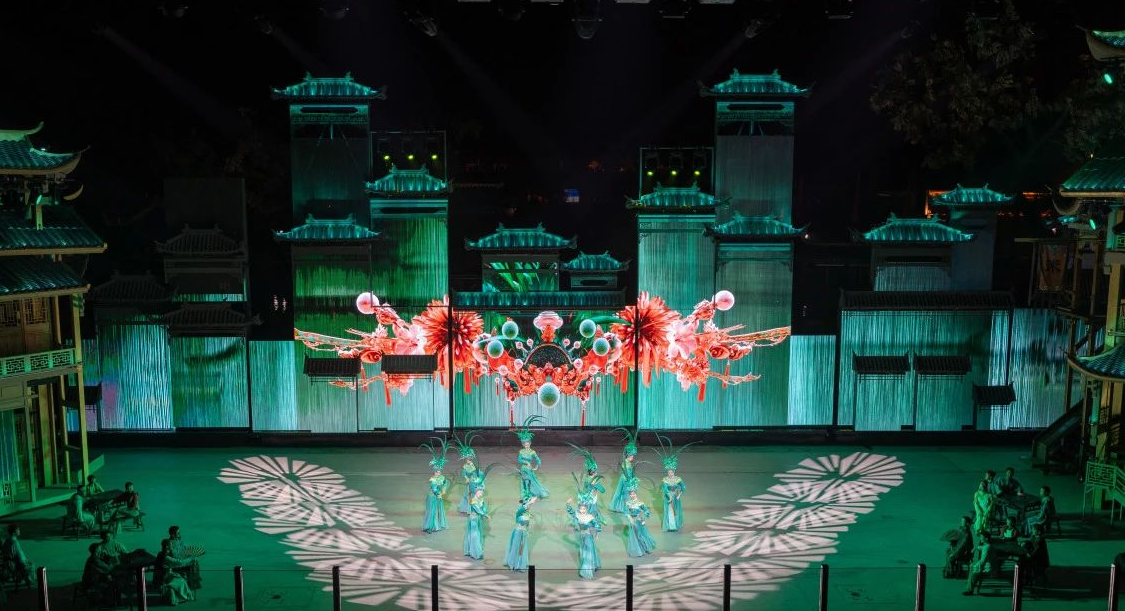

The Celsus outdoor transparent series is an ultra-light and transparent display solution featuring dedicated curvature locks for large curved screens and both four-way and regular lock options. With high brightness, wind resistance, and seamless visuals, it's ideal for outdoor advertising, stage backdrops, and architectural facades.
Technical Specifications
P5.9 P6.9 P10.4
LED Type SMD1921(GOB) SMD1921(GOB) SMD1921(GOB)
Pixel Density(dot/m²) 28224/m² 20736/m² 9216/m²
Module Dimension(mm) 250*500 125*500 125*500
Panel Size(mm) 500x1000x52 500x1000x52 500x1000x52
Module Quantity(WXH) 1X4 1X8 1X8
Panel Resolution 84X42 72X18 48X12
P5.9 P6.9 P10.4 GOB Flexible Customization Ultra Lightweight Excellent Heat Dissipation IP65 Waterproof Design Carbon fiber Frame High Transparency LED
Maintenance Rear access
Single Point Brightness Correction Have
Brightness(Nits) 5000
Color Temperature(K) 3200-9300
Viewing Angle(V/H) 160°/160°
Brightness/Color Uniformity ≥97%
Weight Cabinet 6.9kg
Contrast 6000:1
Frame Frequency 50/60
Gray Level 14/16
P5.9 P6.9 P10.4 GOB Flexible Customization Ultra Lightweight Excellent Heat Dissipation IP65 Waterproof Design Carbon fiber Frame High Transparency LED
Refresh Rate(Hz) 7680
Max Power Consumption 600(W/m²)
Avg Power Consumption 200-300(W/m²)
Protection Level IP65
Operating Life 100,000 hours
Power Input AC100-240V,50/60Hz
Operating Temperature -20~60°C
Operating Humidity 10%~85% RH
Cert. CCC/CE/RoHS/FCC/CB/TUV/IEC
P5.9 P6.9 P10.4 GOB Flexible Customization Ultra Lightweight Excellent Heat Dissipation IP65 Waterproof Design Carbon fiber Frame High Transparency LED

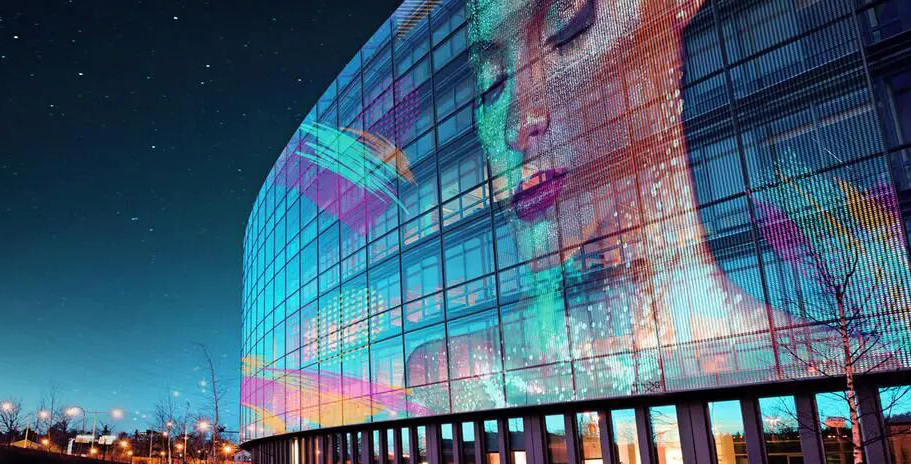

The Celsus outdoor transparent series offers an innovative blend of lightness, durability, and visual brilliance. Weighing as little as 6.9 kg per panel with a carbon fiber frame, it ensures easy installation and reduced structure load. Featuring high transparency and IP65 waterproof protection, it performs reliably in any weather. The design provides excellent heat dissipation and supports flexible customization, including 90° splicing and curved assembly. With refresh rates up to 7680 Hz, 16-bit grayscale, and dual-power redundancy, it delivers stable, vivid, and energy-efficient performance for both architectural and commercial applications.
