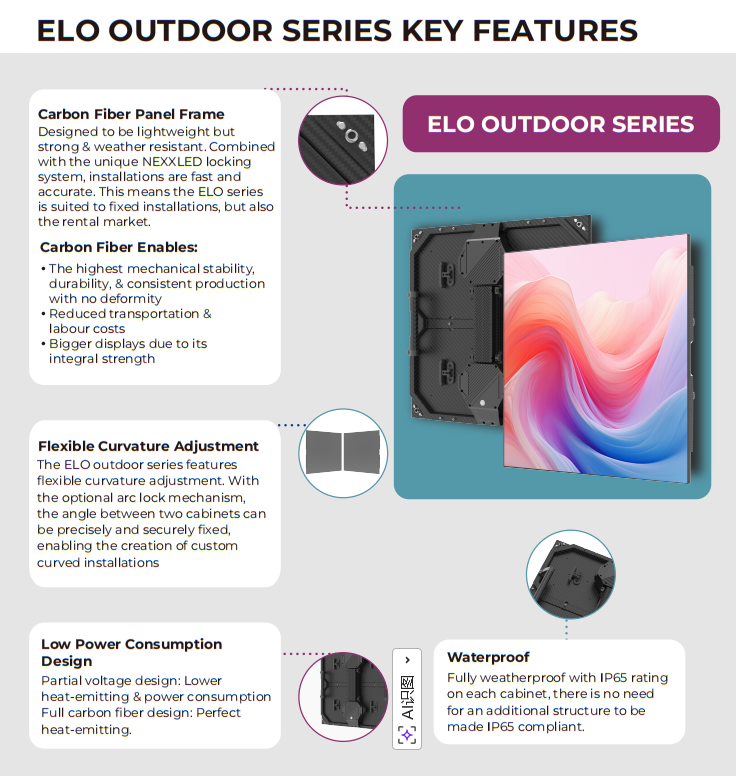

The ELO outdoor series combines cutting-edge materials and intelligent design for superior outdoor performance. Its carbon fiber construction ensures a lightweight yet exceptionally robust and weather-resistant cabinet, streamlining installation and reducing costs. With a native IP65 rating, it guarantees complete weatherproof protection. Furthermore, its innovative low-power design minimizes operational costs and enhances reliability, making it an ideal, energy-efficient solution for both permanent installations and the rental market.
Technical Specifications
| | P2.6 | P2.97 | P3.9 | P4.8 | P5.2 |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density(dot/m²) | 147456/m² | 112896/m² | 65536/m² | 43264/m² | 36864/m² |
| Module Dimension(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Size(mm) | 500x500x67 | 500x500x67 | 500x500x67 | 500x500x67 | 500x500x67 |
| Module Quantity(WXH) | 2X2 | 2X2 | 2X2 | 2X2 | 2X2 |
| Panel Resolution | 192X192 | 168X168 | 128X128 | 104X104 | 96X96 |

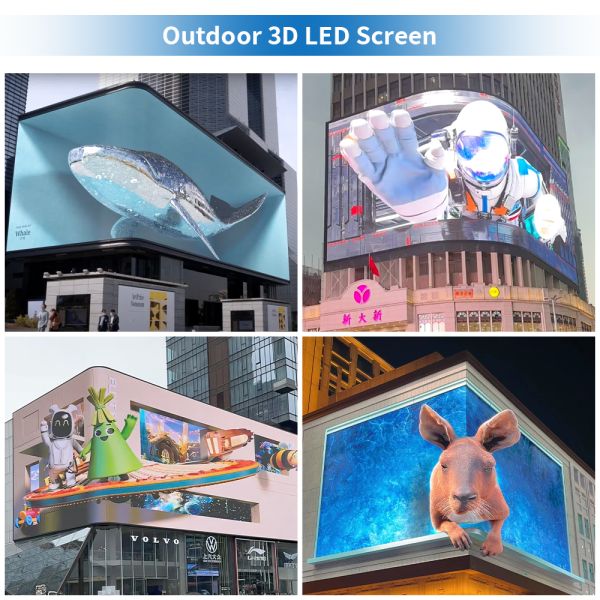

Large DOOH screens need low weight, high performance LED solutions that are operationally efficient but make a great impact.
| Maintenance | Front / Rear access |
| Single Point Brightness Correction | Have |
| Brightness(Nits) | 6000 |
| Color Temperature(K) | 3200-9300 |
| Viewing Angle(V/H) | 160°/160° |
| Brightness/Color Uniformity | ≥97% |
| Weight Cabinet | 4.9kg |
| Contrast | 6000:1 |
| Frame Frequency | 50/60 |
| Gray Level | 16 |

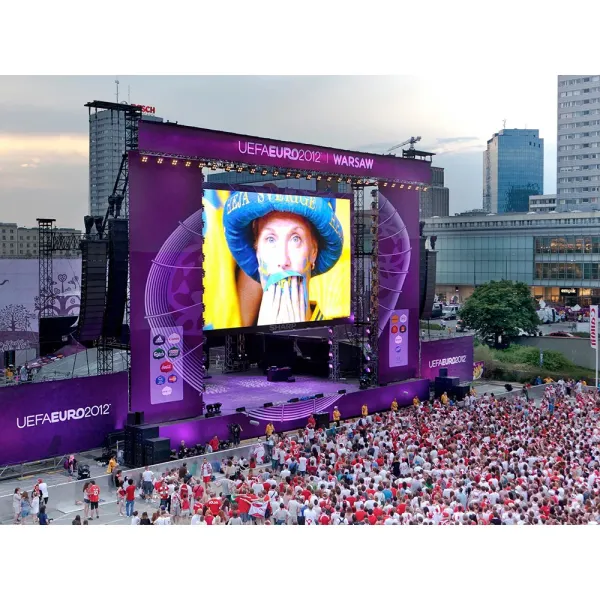

Massive outdoor LED screens are essential at music festivals and concerts. They amplify the energy, displaying live close-ups of artists, vibrant visuals, and lyrics. This creates an immersive experience, ensuring every fan, even those far back, feels connected to the performance.
| Refresh Rate(Hz) | 7680 |
| Max Power Consumption | 1200(W/m²) |
| Avg Power Consumption | 600(W/m²) |
| Protection Level | IP65 |
| Operating Life | 100,000 hours |
| Power Input | AC90-264V,47/63Hz |
| Operating Temperature | -20~60°C |
| Operating Humidity | 10%~85% RH |
| Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC |
Screens in outdoor stadiums offer a dynamic way to display information, enhancing fan engagement with real-time updates, vivid visuals, and interactive presentations during events.

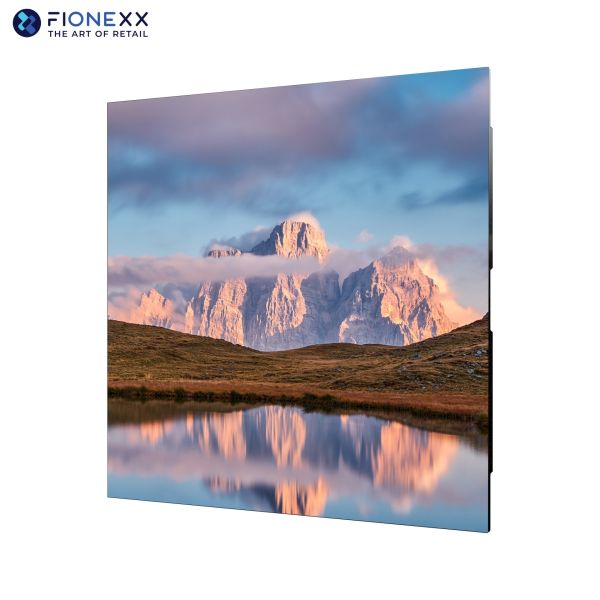

The ELO ourdoor series is our first all-weather outdoor LED display based on carbon fiber frame with ultra lightweight, integrated with the power, receiver, and modules all in one cabinet. Avaliable with front and rear maintenance for easy installation.
